KLE sidestand
« on: September 27, 2012, 06:53:36 pm »
Anybody got a modification or alternative to the kak standard issue job?
Nee wat vlekkelose ek kuier op my lekkerste tussen die rokers,dronkgatte,vloekers,hoere en ander sondaars  :imaposer:
R1150gs,  KLE 500, XT660R.


Offline StevedW

  • Pack Dog
  • **
  • Bike: Kawasaki KLE 500
    Location: Gauteng
  • Posts: 418
Re: KLE sidestand
« Reply #1 on: September 27, 2012, 07:45:49 pm »
What are you hoping to achieve .... mine works fine?


Offline SmuGS

  • A very quiet
  • Race Dog
  • ***
  • Bike: BMW R1150GS
    Location: Eastern Cape
  • Posts: 3,336
  • Thanked: 69 times
  • 100 048 km.
Re: KLE sidestand
« Reply #2 on: September 28, 2012, 04:36:17 am »
Yeah it works fine on hard flat ground but it's too near to centre line of the bike so on soft ground the bike wants to fall over. I was thinking something along the line of a KLR stand with a bend in it..
Nee wat vlekkelose ek kuier op my lekkerste tussen die rokers,dronkgatte,vloekers,hoere en ander sondaars  :imaposer:
R1150gs,  KLE 500, XT660R.


Offline StevedW

  • Pack Dog
  • **
  • Bike: Kawasaki KLE 500
    Location: Gauteng
  • Posts: 418
Re: KLE sidestand
« Reply #3 on: September 28, 2012, 02:20:56 pm »
No stand works on soft ground. Best bet, an easiest, is to attach a bigger 'foot' to the current stand. An easy mod and can be bolted or weled but id you are welding make sure you don't spike the lektrics ... use gas!!


Offline MadM

  • Pack Dog
  • **
  • Bike: Kawasaki KLE 500
    Location: Europe
  • Posts: 123
Re: KLE sidestand
« Reply #4 on: September 28, 2012, 08:24:58 pm »
No stand works on soft ground. Best bet, an easiest, is to attach a bigger 'foot' to the current stand. An easy mod and can be bolted or weled but id you are welding make sure you don't spike the lektrics ... use gas!!

Or simply take the stand off while welding, its just one bolt and a spring not more than 5min work. I had to lengthen my side stand and while doing that I got a bigger plate welded on and it helps a lot!

Offline SmuGS

  • A very quiet
  • Race Dog
  • ***
  • Bike: BMW R1150GS
    Location: Eastern Cape
  • Posts: 3,336
  • Thanked: 69 times
  • 100 048 km.
Re: KLE sidestand
« Reply #5 on: September 29, 2012, 06:49:22 am »
ok so I managed to source a 2nd hand side stand with a bend in it from some other bike, fitted it an bike seems a lot more stable. Will post before and after pics later...
Nee wat vlekkelose ek kuier op my lekkerste tussen die rokers,dronkgatte,vloekers,hoere en ander sondaars  :imaposer:
R1150gs,  KLE 500, XT660R.


Offline StevedW

  • Pack Dog
  • **
  • Bike: Kawasaki KLE 500
    Location: Gauteng
  • Posts: 418
Re: KLE sidestand
« Reply #6 on: October 03, 2012, 05:48:17 pm »
any idea what bike it came from and where are the pics?


Offline SmuGS

  • A very quiet
  • Race Dog
  • ***
  • Bike: BMW R1150GS
    Location: Eastern Cape
  • Posts: 3,336
  • Thanked: 69 times
  • 100 048 km.
Re: KLE sidestand
« Reply #7 on: October 04, 2012, 10:00:49 am »
Apologies for the delay in replying, I been on leave and out the loop a bit.

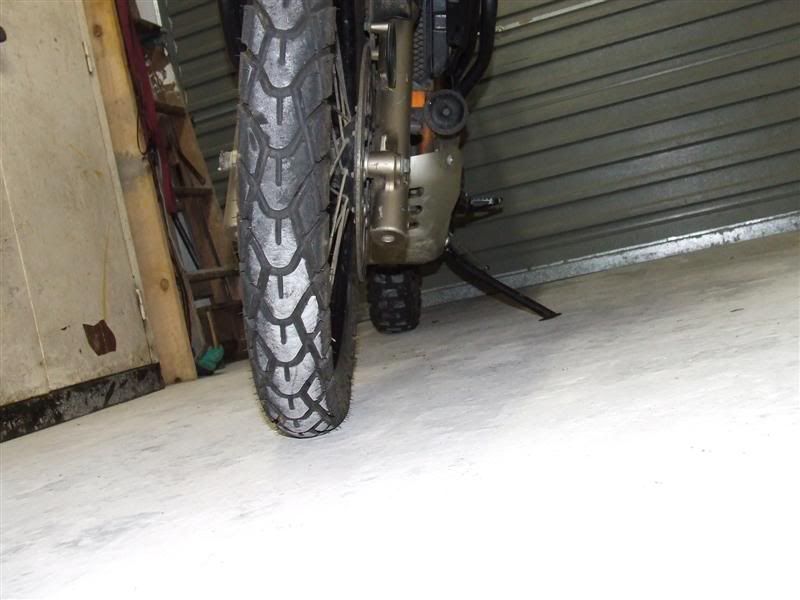

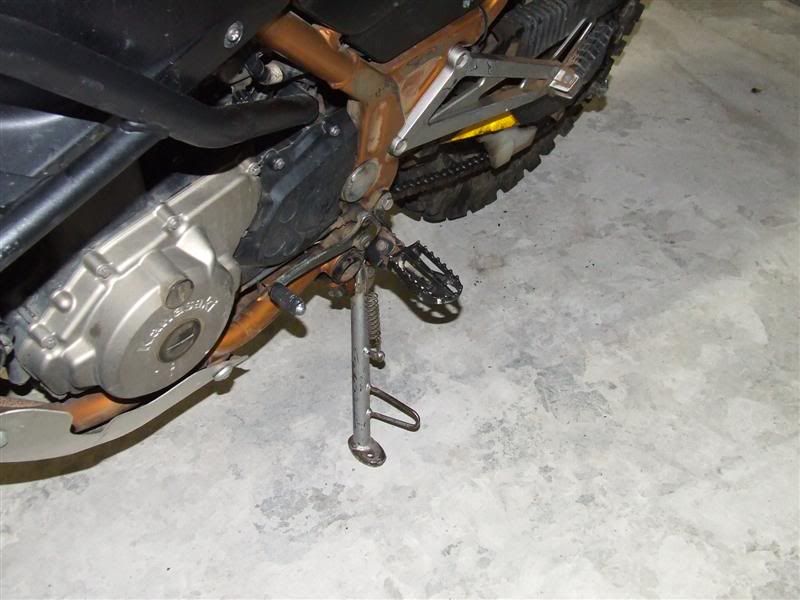

Here you see the standard side stand is close to the centre line of the wheels

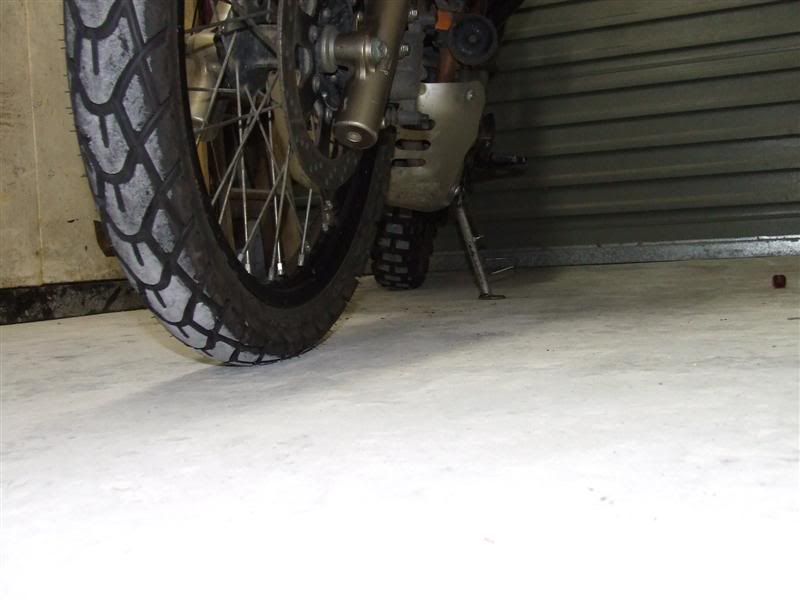

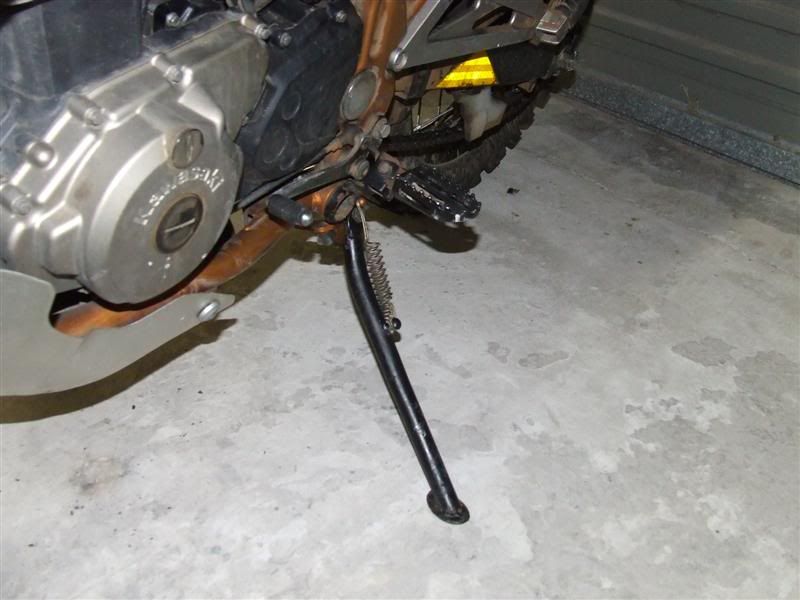

And here the 2nd hand one with a bend in it





As you can see the 2nd hand ones foot is further from the centre line and makes the bike more stable.
I'm not sure what bike the donor stand came from but I suspect it could also be from a Kawasaki, possibly a KDX.
I took the KLE stand with to a bike shop in PE and looked among their junk till I found the donor stand.
I did not even have to modify the bolt hole, I used the KLE bolt and it simply bolted straight on.
Nee wat vlekkelose ek kuier op my lekkerste tussen die rokers,dronkgatte,vloekers,hoere en ander sondaars  :imaposer:
R1150gs,  KLE 500, XT660R.


Offline StevedW

  • Pack Dog
  • **
  • Bike: Kawasaki KLE 500
    Location: Gauteng
  • Posts: 418
Re: KLE sidestand
« Reply #8 on: October 04, 2012, 05:29:25 pm »
Nice improvement..... you were lucky!!!


Offline Padkaart

Re: KLE sidestand
« Reply #9 on: September 06, 2016, 08:12:48 pm »
I agree the Kle's sidestand is to up right. The new one that you fit how long is it? Does it stand out a lot when the bike is of the stand. Can you perhaps place a picture or two woth the stand flip up. I am considering to make a stand my self and you input will help a lot thanks.
