DR650 Bashplate and Rear Rack Project
« on: July 10, 2015, 10:34:39 am »

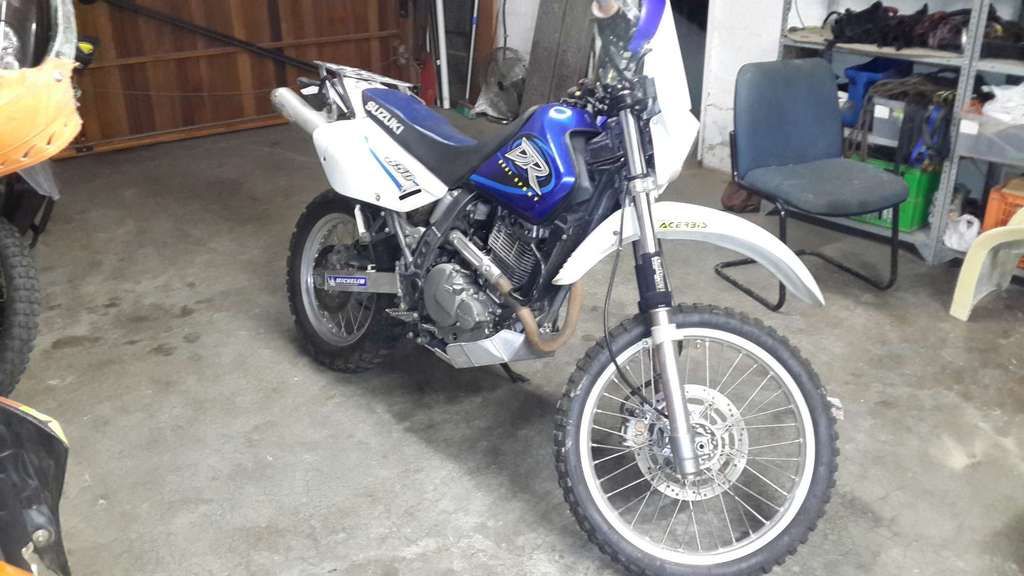

I recently designed a bashplate and rear luggage rack for my DR650 and had them fabricated from 5mm aluminium 5754. I am very pleased with the results. Here are a couple of photos.
Let me know if you'd like to buy one of these. if there is enough interest I'll get some more made up.

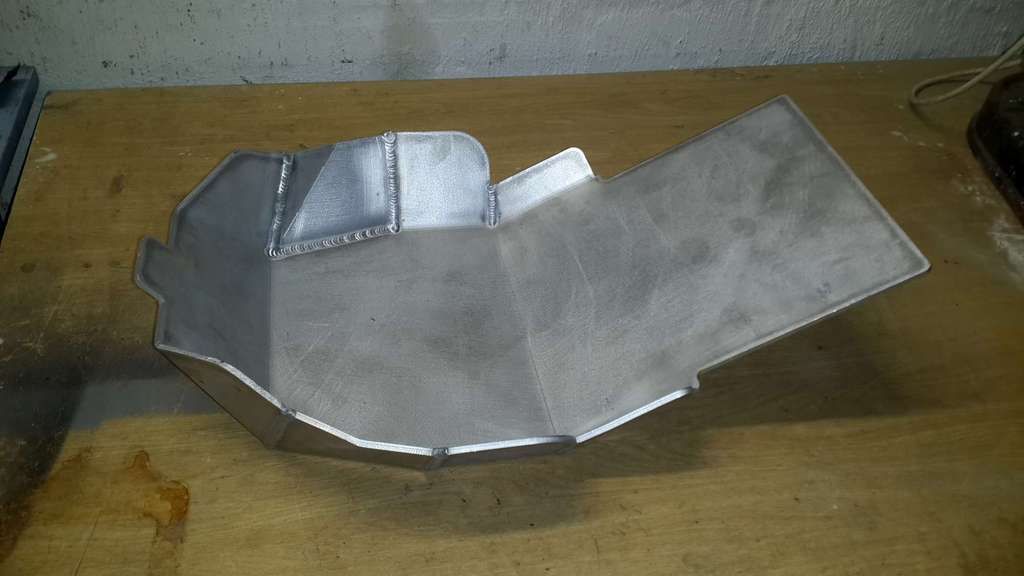

Here is the raw bashplate before drilling the mounting holes.

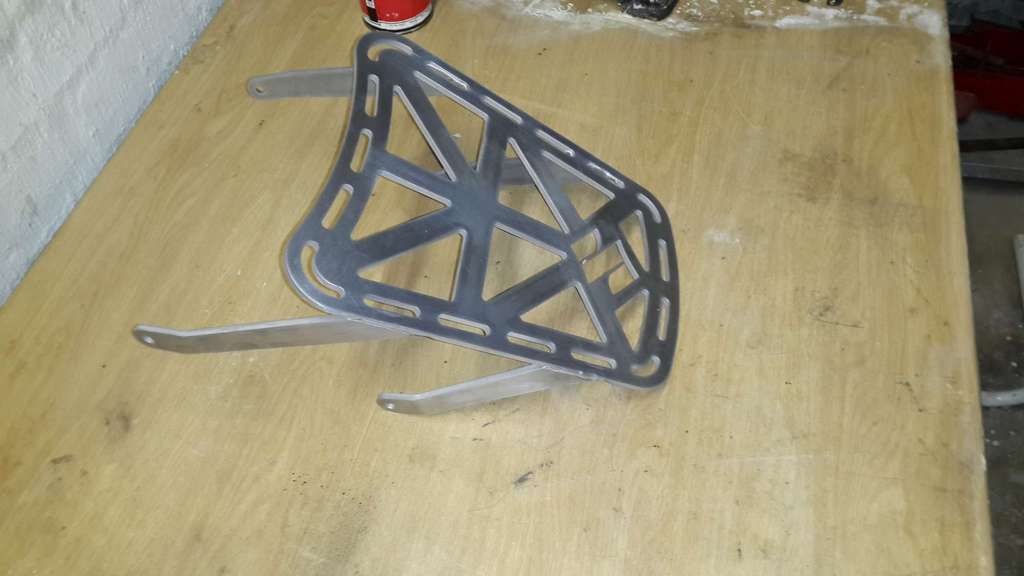

And the rack before mounting.

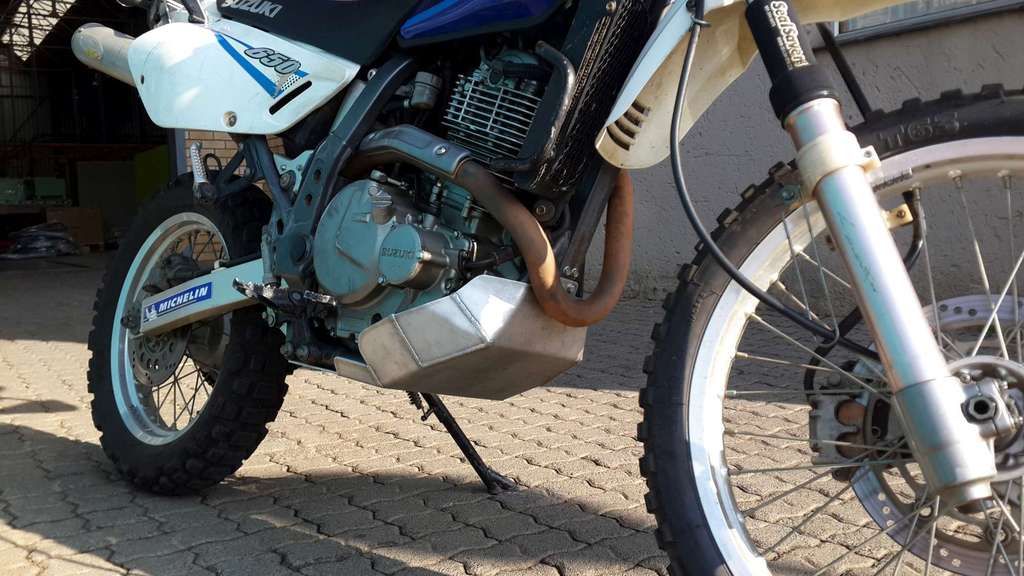

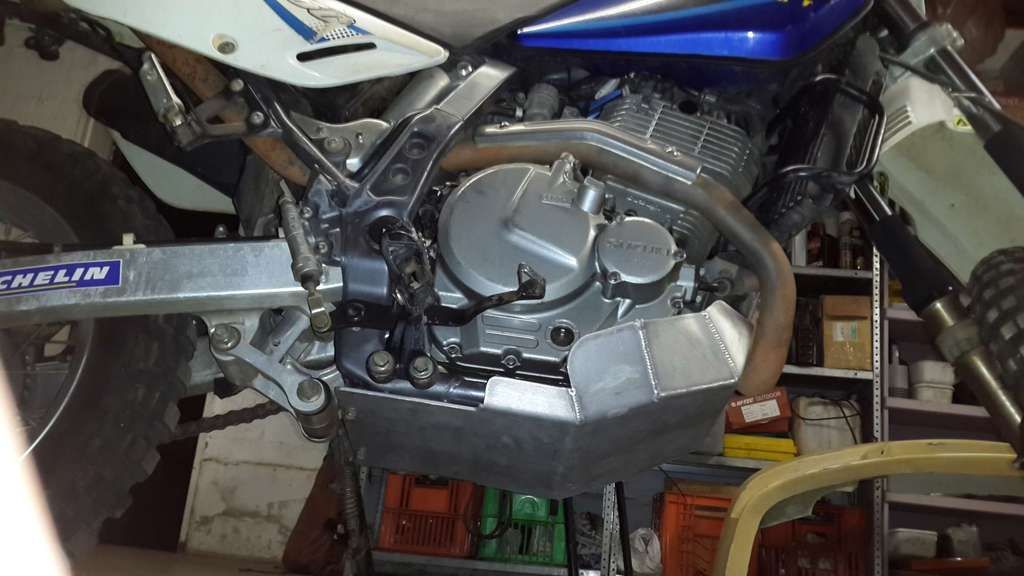

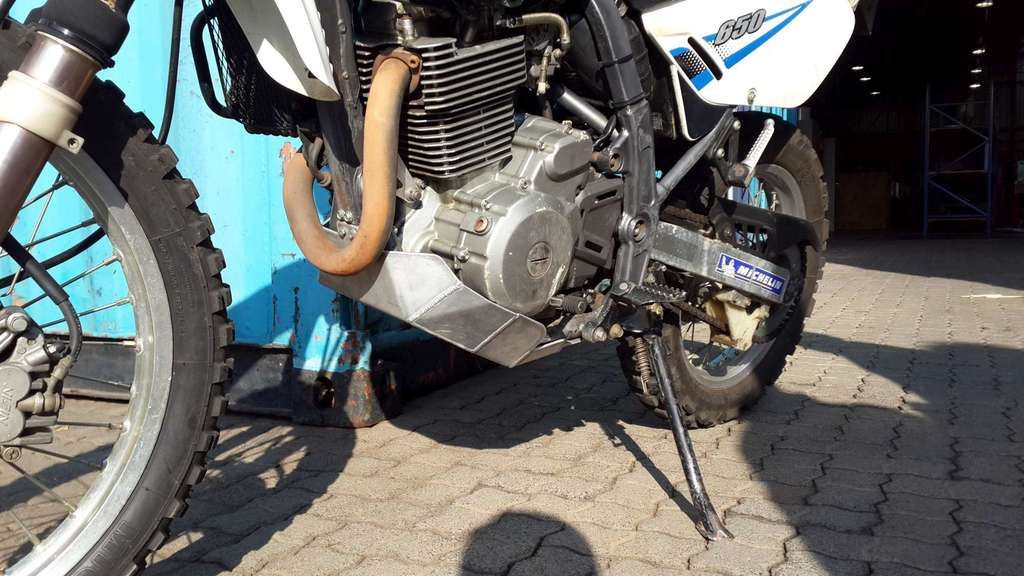

The bashplate on the bike.

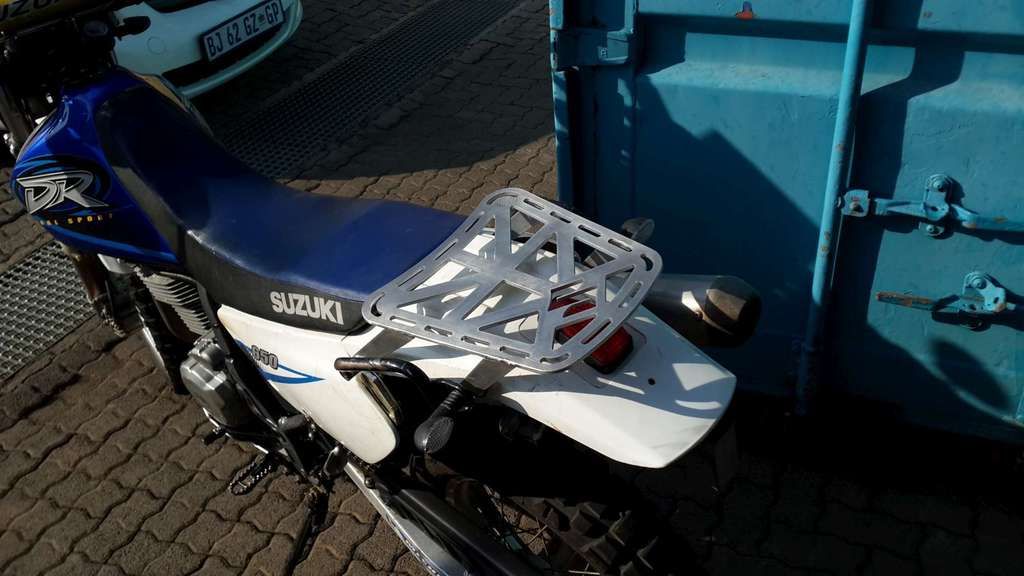

And the rack on the bike.
Ride, Crash, Fix, Repeat


Offline ZA

  • Senior Member
  • ***
  • Bike: Suzuki DR650
    Location: Western Cape
  • Posts: 843
  • Vini Vidi Vici
Re: DR650 Bashplate and Rear Rack Project
« Reply #1 on: July 10, 2015, 11:00:00 am »
Daai luggage plate is baie netjies. Well done  :thumleft:


Offline limacon

Re: DR650 Bashplate and Rear Rack Project
« Reply #2 on: July 10, 2015, 11:59:30 am »
Nice  :thumleft:
“God is a comedian playing to an audience that is too afraid to laugh.” ~ Voltaire


Offline NISMARK

  • Ek is, daarom ek is Nismark!!!
  • Senior Member
  • ***
  • Bike: Yamaha XT660
    Location: Western Cape
  • Posts: 2,719
  • Thanked: 5 times
  • aka GENERAAL, maar noem my maar Oom Flip
Re: DR650 Bashplate and Rear Rack Project
« Reply #3 on: July 11, 2015, 06:03:48 pm »
Price on both?
Ek val graag!!!


Offline Crab

  • Senior Member
  • ***
  • Bike: Suzuki DR650
    Location: Eastern Cape
  • Posts: 2,010
  • Thanked: 7 times
Re: DR650 Bashplate and Rear Rack Project
« Reply #4 on: July 11, 2015, 08:34:22 pm »
Very neat work. I like the design
Look for a shooting star and see Lynda's trail and remember all the great places you shared with her,she will never forget what she shared with you and will show you that in every starry night .


Offline Alphat

Re: DR650 Bashplate and Rear Rack Project
« Reply #5 on: July 13, 2015, 08:30:14 am »
Price on both?

Hey Nismark, I'll let you know once I get a quote.

Thanks all for the compliments.
Ride, Crash, Fix, Repeat


Online Black_Hawk

  • BackroadRiderZA
  • Senior Member
  • ***
  • Bike: BMW F800GS
    Location: Western Cape
  • Posts: 3,803
  • Thanked: 317 times
  • Follow our blog: https://mytownsatoz.wordpress.com
    • My Towns A to Z
Re: DR650 Bashplate and Rear Rack Project
« Reply #6 on: July 13, 2015, 08:44:17 am »
Looking very good....  :thumleft: Just a idea... consider laser cutting some holes/slots in the bash plate for to get rid of the water and dirt that may lay in it.
Follow our blog: https://mytownsatoz.wordpress.com

2010 F650GS (Sold), 2009 BMW F800GS, 2002 BMW F650GS (Sold), 1982 Honda XR200R, 1983 Honda XL600R


Offline Alphat

Re: DR650 Bashplate and Rear Rack Project
« Reply #7 on: July 13, 2015, 09:55:23 am »
Looking very good....  :thumleft: Just a idea... consider laser cutting some holes/slots in the bash plate for to get rid of the water and dirt that may lay in it.

Yup, still have to do this. I also want to cut a hole for the sump plug so I don't have to take it off to do an oil service.
Ride, Crash, Fix, Repeat


Online Black_Hawk

  • BackroadRiderZA
  • Senior Member
  • ***
  • Bike: BMW F800GS
    Location: Western Cape
  • Posts: 3,803
  • Thanked: 317 times
  • Follow our blog: https://mytownsatoz.wordpress.com
    • My Towns A to Z
Re: DR650 Bashplate and Rear Rack Project
« Reply #8 on: July 13, 2015, 04:12:07 pm »
 :thumleft:
Follow our blog: https://mytownsatoz.wordpress.com

2010 F650GS (Sold), 2009 BMW F800GS, 2002 BMW F650GS (Sold), 1982 Honda XR200R, 1983 Honda XL600R


Offline Spozzy

  • Member
  • **
  • Bike: Yamaha XT 660 Z
    Location: Gauteng
  • Posts: 85
Re: DR650 Bashplate and Rear Rack Project
« Reply #9 on: July 28, 2015, 08:07:52 pm »
Keen on the luggage rack, any idea on a price yet?


Offline Alphat

Re: DR650 Bashplate and Rear Rack Project
« Reply #10 on: July 29, 2015, 08:57:53 am »
Been a pretty hectic period at work but will try get a quote together and let you guys know. The fabricator does work for me as a favour in between large production runs so it may take a bit of time to get pricing.
Ride, Crash, Fix, Repeat


Offline SandStar

Re: DR650 Bashplate and Rear Rack Project
« Reply #11 on: November 03, 2016, 05:40:53 pm »
Hi there Alphat,

My friend sent me the link that you posted on the DR650 Bashplate and Rear Rack and I am hoping that you are still in the market to either make them or help us to get them made.

My girlfriend just bought a DR650 and the bike is 100% stock standard - no bash plate, carry rack or even crash bars.

So far we found a rear carry rack from a local seller but the price is out of our budget - R3800.
We are also interested in a bashhplate - so far only found one from Lecap at a reasonable price (R3000) and a nice design but unfortunately stock is only available from mid December.

Hope you can assist.

Regards
Gerhard
072 378 0671
« Last Edit: November 03, 2016, 07:05:11 pm by SandStar »


Offline zebra - Flying Brick

  • Forum Vendor: Flying Brick Motorcycle Accessories 021 510 6455 info@flyingbrick.co.za
  • Bachelor Dog
  • *****
  • Bike: BMW (all models)
    Location: Western Cape
  • Posts: 12,125
  • Thanked: 323 times
  • 8 Shropshire St, P Eiland S33°54.712 E018°28.208
    • [b]-Flying Brick- Motorcycle Accessories[/b]
Re: DR650 Bashplate and Rear Rack Project
« Reply #12 on: November 16, 2016, 01:57:14 pm »
bump, I would take a couple of luggage racks too, so that is at least 3 racks.... (SandStar 1 and FlyingBrick 2),...

Now you just have to get back to us...!  ;)

Cheers
Chris & Team
bike@flyingbrick.co.za CHRISTOPER L 021 510 6455  service@flyingbrick.co.za JAN 021 510 6455
sales@flyingbrick.co.za ANDRE 021 510 6455
orders@flyingbrick.co.za WERNER 021 510 6455
info@flyingbrick.co.za CHRIS G


Offline zebra - Flying Brick

  • Forum Vendor: Flying Brick Motorcycle Accessories 021 510 6455 info@flyingbrick.co.za
  • Bachelor Dog
  • *****
  • Bike: BMW (all models)
    Location: Western Cape
  • Posts: 12,125
  • Thanked: 323 times
  • 8 Shropshire St, P Eiland S33°54.712 E018°28.208
    • [b]-Flying Brick- Motorcycle Accessories[/b]
Re: DR650 Bashplate and Rear Rack Project
« Reply #13 on: November 16, 2016, 01:58:13 pm »
otherwise let us have your rack drawings, and I will get them fabricated, etc  ;)

Chris & Team
bike@flyingbrick.co.za CHRISTOPER L 021 510 6455  service@flyingbrick.co.za JAN 021 510 6455
sales@flyingbrick.co.za ANDRE 021 510 6455
orders@flyingbrick.co.za WERNER 021 510 6455
info@flyingbrick.co.za CHRIS G


Offline Casting from Turd

  • Read my avatar and act accordingly
  • Forum Whore
  • ****
  • Bike: BMW R1200GS Adventure
    Location: Eastern Cape
  • Posts: 9,373
  • Thanked: 220 times
  • #DTCBM
    • addobackpackers.com
Re: DR650 Bashplate and Rear Rack Project
« Reply #14 on: November 16, 2016, 02:40:38 pm »
otherwise let us have your rack drawings, and I will get them fabricated, and pay you commission on the sales etc  ;)

Chris & Team

Fixed  :imaposer: :ricky:

Would they fit an XR 650L
I dont want to ride fast, But I want to ride FAR
Past Bikes...Honda XR250 Tornado
Honda XR650L
Honda XL1000V Varadero
http://www.addobackpackers.com


Offline zebra - Flying Brick

  • Forum Vendor: Flying Brick Motorcycle Accessories 021 510 6455 info@flyingbrick.co.za
  • Bachelor Dog
  • *****
  • Bike: BMW (all models)
    Location: Western Cape
  • Posts: 12,125
  • Thanked: 323 times
  • 8 Shropshire St, P Eiland S33°54.712 E018°28.208
    • [b]-Flying Brick- Motorcycle Accessories[/b]
Re: DR650 Bashplate and Rear Rack Project
« Reply #15 on: November 16, 2016, 02:56:47 pm »
otherwise let us have your rack drawings, and I will get them fabricated, and pay you commission on the sales etc  ;)

Chris & Team

Fixed  :imaposer: :ricky:

Would they fit an XR 650L
chuckle  :imaposer: chuckle indeed!  :pot:

Mounting points seem different to 650L...?
bike@flyingbrick.co.za CHRISTOPER L 021 510 6455  service@flyingbrick.co.za JAN 021 510 6455
sales@flyingbrick.co.za ANDRE 021 510 6455
orders@flyingbrick.co.za WERNER 021 510 6455
info@flyingbrick.co.za CHRIS G


Offline Casting from Turd

  • Read my avatar and act accordingly
  • Forum Whore
  • ****
  • Bike: BMW R1200GS Adventure
    Location: Eastern Cape
  • Posts: 9,373
  • Thanked: 220 times
  • #DTCBM
    • addobackpackers.com
Re: DR650 Bashplate and Rear Rack Project
« Reply #16 on: November 16, 2016, 04:47:04 pm »
otherwise let us have your rack drawings, and I will get them fabricated, and pay you commission on the sales etc  ;)

Chris & Team

Fixed  :imaposer: :ricky:

Would they fit an XR 650L
chuckle  :imaposer: chuckle indeed!  :pot:

Mounting points seem different to 650L...?

That they do, but still one of the best luggage plates I have seen so far  :thumleft:
I dont want to ride fast, But I want to ride FAR
Past Bikes...Honda XR250 Tornado
Honda XR650L
Honda XL1000V Varadero
http://www.addobackpackers.com


Offline Robin Brown

Re: DR650 Bashplate and Rear Rack Project
« Reply #17 on: November 18, 2016, 05:11:34 pm »
Need to cut laser holes especially under the sump plug.
