Re: 501 Rally/Adv build
« Reply #200 on: May 30, 2021, 07:21:38 pm »
Been preparing for my next trip.
I decided to change the GPS and phone wiring -in essence, I want less wires but also redundancy.

Ordered RAM's wireless charger. They have the X-clamp version too but I've been getting quite annoyed by the way my current X-clamp would press the buttons on the side of my phone. So decided to try another option. Will see how it handles the phone in landscape mode..

Its a bit heavy though.. specs state 300g but maybe that includes all wires and such. The carbon part of my tower only weighs 300g, so that puts things into perspective  :o
So although its much handier, it does weight substantially more than my current old-school X-mount.
But anyway, going this route means I wont need dedicated USB-A and C wires anymore.

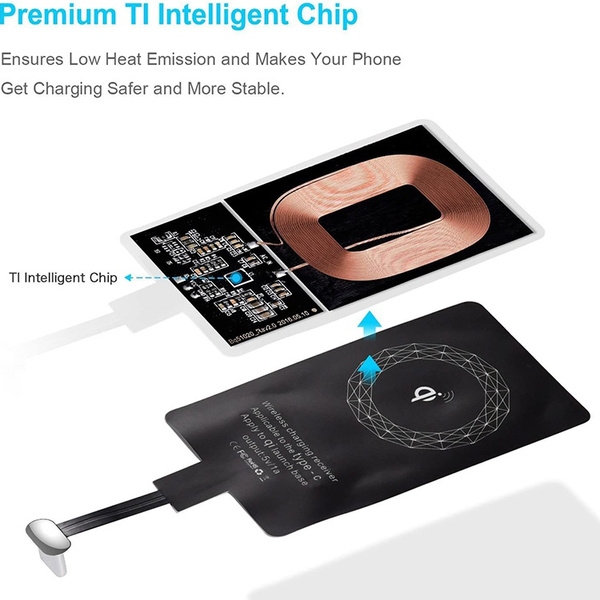

Both phones will require something like this:


I like the cleaner look of the tower already

I've mounted a redundant USB plug on the side of the tower, visible on the bottom left, in the above picture

One 20watt and redundant 15watt USB supplies:


While I had the tower removed, I thought I'd see how much it weighs, vs the stock unit.


540g:

vs 1900g:

This includes the tower mounting brackets, screen mountings, fuse box, GPS mounts and all wiring
« Last Edit: May 30, 2021, 07:26:14 pm by voorvel »
