My DRZ Luggage
« on: January 18, 2011, 09:07:33 am »


--------------------------------------------------------------------------------

The Carrier

Laminated Aly with fibre PCB and ss rivets







The Tools






The Beer

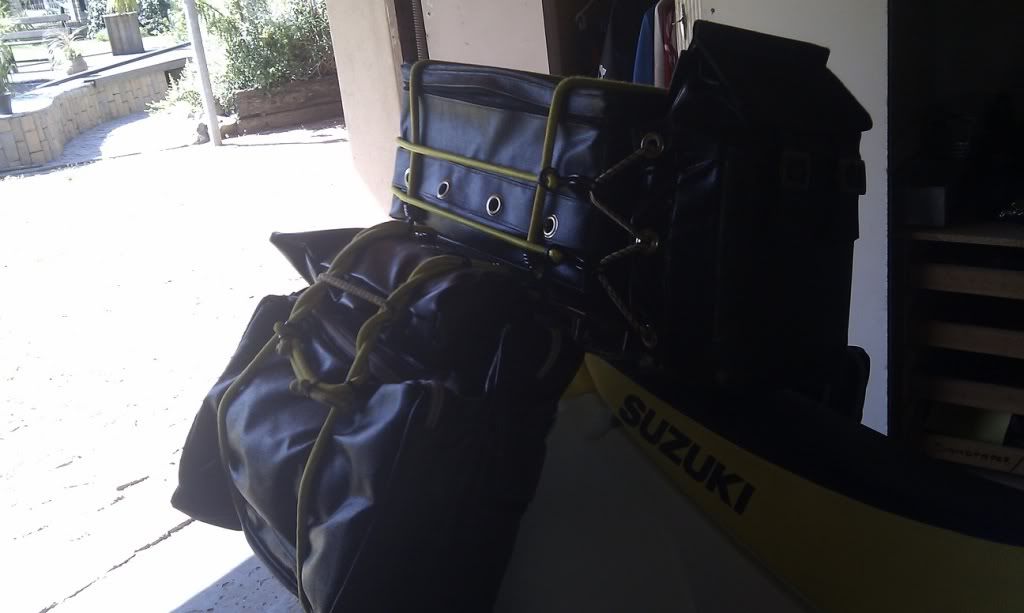

The Bags




The Fuel



The Whole Trip







Offline onderbroek

  • Senior Member
  • ***
  • Bike: Zero (all models)
    Location: Gauteng
  • Posts: 1,747
  • Thanked: 16 times
  • not a GLOBAL MODERATOR
Re: My DRZ Luggage
« Reply #1 on: January 18, 2011, 09:13:09 am »
 :thumleft: :thumleft:

waht type of containers is the fuel put in?
hak vrystaat


Offline Gawel

  • Member
  • **
  • Bike: KTM 690 Adventure
    Location: Eastern Cape
  • Posts: 74
Re: My DRZ Luggage
« Reply #2 on: January 18, 2011, 09:35:12 am »
2 l Coke bottles ( 4x) and a 5 l Prepsol container


Offline onderbroek

  • Senior Member
  • ***
  • Bike: Zero (all models)
    Location: Gauteng
  • Posts: 1,747
  • Thanked: 16 times
  • not a GLOBAL MODERATOR
Re: My DRZ Luggage
« Reply #3 on: January 18, 2011, 09:40:48 am »
Where are they mounted?

hak vrystaat


Offline Gawel

  • Member
  • **
  • Bike: KTM 690 Adventure
    Location: Eastern Cape
  • Posts: 74
Re: My DRZ Luggage
« Reply #4 on: January 18, 2011, 12:15:40 pm »
The 2l containers are strapped on top of the 2 side bags. A further 2 2l bottles can be carried in the top of the 2 side bags.
The 5l can be strapped to the back, front or the top of the beer , depending on the current weight distribution.


Offline GlenInk

  • Elliot`s only
  • Senior Member
  • ***
  • Bike: Kawasaki KLE 500
    Location: Eastern Cape
  • Posts: 4,536
  • Thanked: 1 times
  • R.I.P. 02/02/2012
Re: My DRZ Luggage
« Reply #5 on: January 18, 2011, 01:59:42 pm »
Show us how it loos with everything on, including the fuel !  :mwink:
Quote from: buzzlightyear
"Does your ass not get jealous of all the crap that comes out of your mouth?"

Put brain into gear before opening mouth !   Believe it, cos its true !     Yamaha IT 200; Kawasaki KLE 500 The Ox Wagon


Offline Gawel

  • Member
  • **
  • Bike: KTM 690 Adventure
    Location: Eastern Cape
  • Posts: 74
Re: My DRZ Luggage

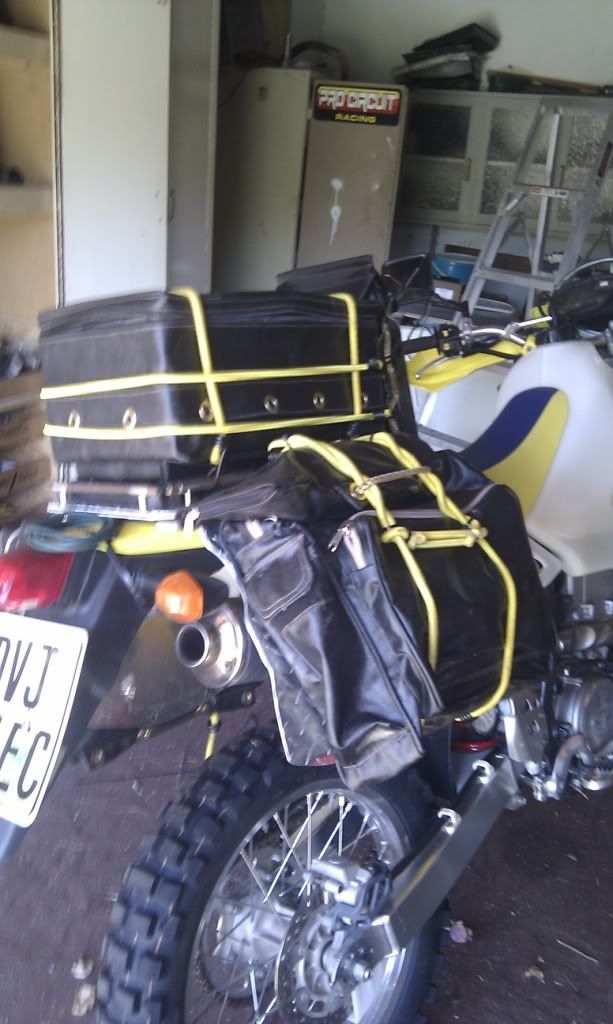

« Reply #6 on: January 18, 2011, 03:25:32 pm »

And same same on the other side.
The 5l can be strapped to the top of the beer if i was wearing a rucksak.
The yellow bungee cords carry all the weight in the side bags and provide a very neat
suspension for the weight. I have done about 1000 km over some rough shit and to date nothing has
fallen off. The 2l coke bottles also make a nice holder for tubes and kit , providing the neccesary protection.
When the sidebags are emty i prop them up with 4 x 2l bottles each. ( more fuel if neccesary !)

Cheers :laughing4:








Offline letsgofishing

  • Forum Whore
  • ****
  • Bike: Suzuki DR-Z 400
    Location: Western Cape
  • Posts: 7,115
  • Sedgefield, Garden Route
    • http://www.mikekaplandesign.com
Re: My DRZ Luggage
« Reply #7 on: January 19, 2011, 11:18:12 am »
Well done there GAwel!
What is fibre PCB?
There is nothing you can do about the past and you can't predict the future...all you have is the now...live it to the fullest.

www.mikekaplandesign.com


Offline Berty77

  • Senior Member
  • ***
  • Bike: Honda CRF-1000L Africa Twin
    Location: Western Cape
  • Posts: 2,728
  • Thanked: 6 times
  • Africa Twin = GROOT KLR
Re: My DRZ Luggage
« Reply #8 on: January 19, 2011, 10:16:18 pm »
Looks good, simple and usefull    .
The more you need the more you pack.
Skaap tjops, Lammie se kerrie wors en Klein Karoo sterre;
dis mos die lewe!


Offline Gawel

  • Member
  • **
  • Bike: KTM 690 Adventure
    Location: Eastern Cape
  • Posts: 74
Re: My DRZ Luggage
« Reply #9 on: January 20, 2011, 05:04:05 am »
A Fibre PCB is a fibreglass reinforced electronic printed circuit board , much like a pc motherboard
without any components. Very strong !  :laughing4:

Cheers


Offline Gawel

  • Member
  • **
  • Bike: KTM 690 Adventure
    Location: Eastern Cape
  • Posts: 74
Re: My DRZ Luggage
« Reply #10 on: January 20, 2011, 05:07:28 am »
Thanx Ninja, I like to think so. :laughing4:
Cheers
