Author Topic: SORTED- WITH PICS-Wanted - Rear rack for 690 (Read 1823 times)

777 · « **on:** July 08, 2013, 09:03:25 pm »

Need one just smallish one for my tool pack ,would prefer one that I can leave the grab handles for the tech riding when one has to move the bike around. Found this on Gumtree fro R500, makes use of the handle grip bolts and has a lever to flip up, works for me!

aka.Goliath · « **Reply #1 on:** July 08, 2013, 09:04:23 pm »

KTM11 · « **Reply #2 on:** July 09, 2013, 07:17:49 am »

These racks are available at Alfie Cox KTM, work really well and you can fasten your soft luggage on here when you head off on a longer trip.

777 · « **Reply #3 on:** July 09, 2013, 07:39:26 am »

Quote from: KTM11 on July 09, 2013, 07:17:49 am

These racks are available at Alfie Cox KTM, work really well and you can fasten your soft luggage on here when you head off on a longer trip.

Can you still add your grab handles on, or wil the bolt be to short?

Bill the Bong · « **Reply #4 on:** July 09, 2013, 07:11:03 pm »

I bolted my toolbag directly to the rear fender.

harryhound · « **Reply #5 on:** July 09, 2013, 09:27:15 pm »

I am also looking for 1 but the one above is still too big and I doubt the handles will fit.

777 · « **Reply #6 on:** July 10, 2013, 09:27:02 am »

Quote from: Bill the Bong on July 09, 2013, 07:11:03 pm

I bolted my toolbag directly to the rear fender.

Explain, pics?

Roadkill · « **Reply #7 on:** July 10, 2013, 01:09:23 pm »

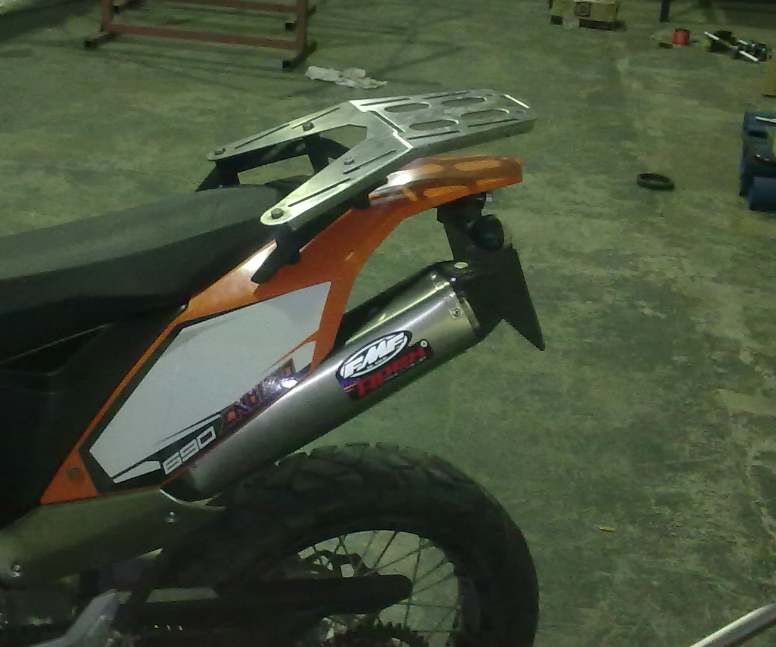

This is one I made for myself ... it's been laser-cut , bent & welded from st.st 304 2.5mm , I have the CAD file if you interested.

777 · « **Reply #8 on:** July 10, 2013, 02:59:18 pm »

Quote from: Roadkill on July 10, 2013, 01:09:23 pm

This is one I made for myself ... it's been laser-cut , bent & welded from st.st 304 2.5mm , I have the CAD file if you interested.

Now that is what I am talking about, can you send the file via e mail?

Roadkill · « **Reply #9 on:** July 10, 2013, 03:18:06 pm »

sure , what format would you prefer ? ....PM your email address

777 · « **Reply #10 on:** July 11, 2013, 02:09:47 pm »

KTM have this oke for R650, I can "fashion" a small plate on it for my tool pack,and for longer trips add a bigger plate??

Roadkill · « **Reply #11 on:** July 11, 2013, 03:56:05 pm »

No prob , I will email tomorrow morning as I don't have the files
with me at work...
PS I have a tail piece ( for sexy tail )
bash plate
rear disc protector

harryhound · « **Reply #12 on:** July 11, 2013, 04:20:38 pm »

777 can you PM me the part # and Road kill I would also appreciate the CAD drawing saves me a hell of a lot of thinking

Roadkill · « **Reply #13 on:** July 11, 2013, 06:52:18 pm »

Harry PM me your email address , I'm sending .dwg format

aka.Goliath · « **Reply #14 on:** July 11, 2013, 11:29:08 pm »

You are a legend

Just a bit confused (probably cos I'm using SolidWorks to view them) how does the Luggage Rack Spacer work/look like? and what are the other three items with Disc Protector?

777 · « **Reply #15 on:** July 15, 2013, 09:59:54 am »

Quote from: Roadkill on July 10, 2013, 03:18:06 pm

sure , what format would you prefer ? ....PM your email address

Hi Can you send it in DXF cannot open drop box.

Roadkill · « **Reply #16 on:** July 16, 2013, 05:33:12 pm »

aka , the spacer screws into the tank handle mnt holes and then the rack fits ontop
with its own screws to fix it to the spacers .

Roadkill · « **Reply #17 on:** July 16, 2013, 05:33:46 pm »

parts

aka.Goliath · « **Reply #18 on:** July 16, 2013, 06:35:04 pm »

Awesome thanks, I'm heading to a company tomorrow to see if they can do some of this for me.

Bullet · « **Reply #19 on:** July 21, 2013, 08:36:08 am »

Quote from: Roadkill on July 10, 2013, 01:09:23 pm

This is one I made for myself ... it's been laser-cut , bent & welded from st.st 304 2.5mm , I have the CAD file if you interested.

Yes please for cad file
